The PMC to XMC Converter facilitates the use of a PCI Mezzanine Card (PMC) Adapter in a Switched Mezzanine Card (XMC) system. This converter can be used either for production testing or field testing of PMC Adapters using an XMC-only host. It is also possible to use the converter in production systems, but an extra slot will be required to accommodate the combination of the PMC Adapter and the PMC to XMC Converter.

The adapter provides a single lane PCIe signal interface on the host XMC site. A 33 or 66 MHz PCI Bus signal interface with either 32 bit or 64 bit bus extension is provided to the host PMC site.

The PMC Jn4 I/O signals are routed through to the host PMC site.

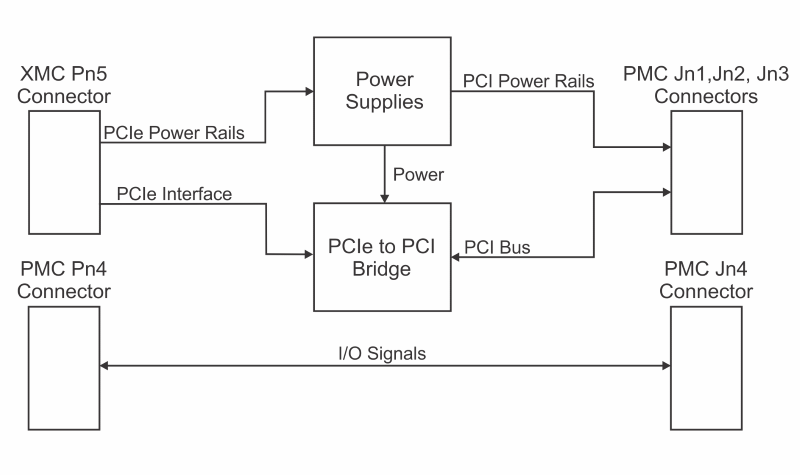

PMC to XMC Converter Block Diagram

Features

single lane PCIe to 33/66 MHz, 32 or 64 bit PCI Bus interface
power, Bus Mode, Reset and Interrupt LED indicators

Applications

production or field tests

Specifications
PCIe Interface Single lane; 2,5 GHz PCIe
Electrically : PCI Express Rev. 2.0
PCI Interface 32-bit or 64-bit PCI, 33/66 MHz
Electrically : PCI Rev. 2.2; 3,3 V signalling
Reliability Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grade Ground Benign, Controlled, 25 C 750 000 hours
Ruggedised Grade Ground Mobile, 45 C
Naval, Sheltered, 40 C
Airborne, Inhabited Cargo, 55C 150 000 hours
250 000 hours
200 000 hours

Specifications
PCIe Interface	Single lane; 2,5 GHz PCIe Electrically : PCI Express Rev. 2.0
PCI Interface	32-bit or 64-bit PCI, 33/66 MHz Electrically : PCI Rev. 2.2; 3,3 V signalling
Reliability	Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grade	Ground Benign, Controlled, 25 C	750 000 hours
Ruggedised Grade	Ground Mobile, 45 C Naval, Sheltered, 40 C Airborne, Inhabited Cargo, 55C	150 000 hours 250 000 hours 200 000 hours

Physical Characteristics
Formfactor Dimensions Mass
CCXMC 143,75 mm x 74,00 mm (+0,0 / -0,5 mm), height envelope of 16,00 mm 50 g +/- 10 g

Physical Characteristics
Formfactor	Dimensions	Mass
CCXMC	143,75 mm x 74,00 mm (+0,0 / -0,5 mm), height envelope of 16,00 mm	50 g +/- 10 g

Environmental Specifications
Commercial Grade Industrial Grade Ruggedised
Temperature
- Operating
- Storage
0 C to +55 C
-40 C to +85 C
-15 C to +75 C
-50 C to +85 C
-40 C to +85 C
-60 C to +125 C
Humidity 0% - 90% non-condensing 0% - 95% non-condensing 0% - 95% non-condensing
Shock N/A 30 g peak for 11 ms 40 g peak for 11 ms
Vibration
- Sine
- Random
2 g (peak) 10 Hz to 100 Hz
0,04 g²/Hz at 15 Hz to 2 kHz
2 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz
10 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz

Environmental Specifications
	Commercial Grade	Industrial Grade	Ruggedised
Temperature - Operating - Storage	0 C to +55 C -40 C to +85 C	-15 C to +75 C -50 C to +85 C	-40 C to +85 C -60 C to +125 C
Humidity	0% - 90% non-condensing	0% - 95% non-condensing	0% - 95% non-condensing
Shock	N/A	30 g peak for 11 ms	40 g peak for 11 ms
Vibration - Sine - Random	2 g (peak) 10 Hz to 100 Hz 0,04 g²/Hz at 15 Hz to 2 kHz	2 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz	10 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz

Part Selector
Part Designation Grade
CCII/FFC/XMCPMC/COM Commercial
CCII/FFC/XMCPMC/IND Industrial

Part Selector
Part Designation	Grade
CCII/FFC/XMCPMC/COM	Commercial
CCII/FFC/XMCPMC/IND	Industrial

CFFCSS004 Rev 0.5 2017-08-01
CCII Systems (Pty) Ltd • P.O. Box 171 • Rondebosch 7701 • South Africa
Telephone : (+27 21) 683 5490 • Facsimile : (+27 21) 683 5435 • WWW : www.ccii.co.za
