Advance
	PDF print version of this specification

The 8-Channel Ultra High-Speed Serial I/O 3U cPCI Board provides eight channels of simultaneous, high-speed (>20 Mbit/s), bi-directional serial communications. All channels are jumper configurable as RS232/422/485. This adapter also supports a number of UART (Universal Asynchronous Receiver/Transmitter) (<1 Mbit/s) channels.

The board design complies with the 3U cPCI specification (PICMG 2.0 (R 3.0)) and is available in commercial, industrial, and ruggedised grades and in air-cooled and conduction-cooled versions with front panel or backplane I/O.

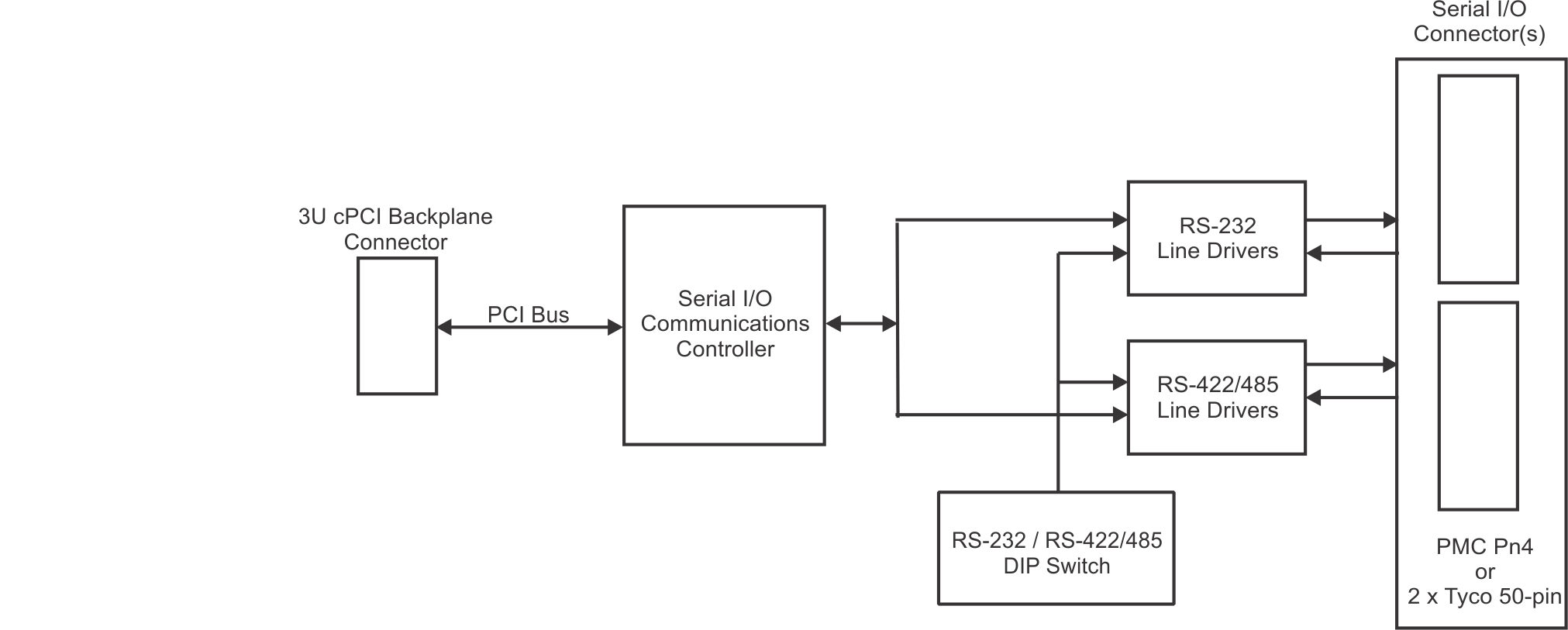

8-Channel Ultra High-Speed Serial I/O 3U cPCI Board Block Diagram

Architecture

The 8-Channel Ultra High-Speed Serial I/O 3U cPCI Board is an intelligent I/O board designed with an NXP PowerQUICC II Integrated PowerPC Microprocessor as communication controller. The PowerQUICC II processor can easily be configured to implement different serial protocols, thus allowing the board to keep up with technological advances. All high-speed serial I/O channels are implemented using the PowerQUICC II.

Features

cost-effective and flexible option for systems that require both a large number of high-speed, real-time communication links, as well as some low-speed serial links
offers independent I/O processing offboard the host

Applications

Distributed real-time applications in harsh environments
Mission-critical applications
Avionics
Vetronics
High-speed sensor integration
Legacy connectivity

Specifications
Formfactor 32-bit, 66 MHz
Electrically : PICMG 2.0 (R 3.0) CompactPCI
3,3 V PCI signalling, 5 V tolerant
Host Interface Electrically : PCI
I/O Addresses Automatically assigned to the slot by PCI Rev. 2.1 Plug-and-Play
EEPROM EEPROM for Board ID (Plug-and-Play) and configuration options
DMA Automatic depending on PCI slot
Serial I/O Interface SCC Channels SMC Channels
RS-232 : TxD, RxD, RTS, CTS, CD, CLK_IN, CLK_OUT RS-232: RxD, TxD
RS-422/385 : TxD, RxD, CLK_IN, CLK_OUT
Termination 100 ohm (individually selectable for each SCC channel)
Bit Rates Serial I/O Clocking RS-232 RS422/485
Synchronous Mode 1 Mbps 20 Mbps
Asynchronous Mode 1 Mbps 6,25 Mbps
Maximum External Clock 500 kHz 16 MHz
Protocols
HDLC
SDLC
Async
BiSync

CPU NXP PowerQUICC II Integrated PowerPC Microprocessor
Power
3,3 V at 1,3 A
5 V at 100 mA
12 V at 1 mA

Software Drivers Various software drivers offered including for VxWorks and Linux operating systems as standard; others are costed options.
Supporting Software Sample software driver usage (C/C++ source code)
MTBF Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grades Ground Benign, Controlled, 25 C 350 000 hours
Ruggedised Grade Ground Mobile, 45 C
Naval, Sheltered, 40 C
Airborne, Inhabited Cargo, 55C 30 000 hours
60 000 hours
50 000 hours

Specifications
Formfactor	32-bit, 66 MHz Electrically : PICMG 2.0 (R 3.0) CompactPCI 3,3 V PCI signalling, 5 V tolerant
Host Interface	Electrically : PCI
I/O Addresses	Automatically assigned to the slot by PCI Rev. 2.1 Plug-and-Play
EEPROM	EEPROM for Board ID (Plug-and-Play) and configuration options
DMA	Automatic depending on PCI slot
Serial I/O Interface	SCC Channels	SMC Channels
RS-232 : TxD, RxD, RTS, CTS, CD, CLK_IN, CLK_OUT	RS-232: RxD, TxD
RS-422/385 : TxD, RxD, CLK_IN, CLK_OUT
Termination	100 ohm (individually selectable for each SCC channel)
Bit Rates	Serial I/O Clocking	RS-232	RS422/485
Synchronous Mode	1 Mbps	20 Mbps
Asynchronous Mode	1 Mbps	6,25 Mbps
Maximum External Clock	500 kHz	16 MHz
Protocols	HDLC SDLC Async BiSync
CPU	NXP PowerQUICC II Integrated PowerPC Microprocessor
Power	3,3 V at 1,3 A 5 V at 100 mA 12 V at 1 mA
Software Drivers	Various software drivers offered including for VxWorks and Linux operating systems as standard; others are costed options.
Supporting Software	Sample software driver usage (C/C++ source code)
MTBF	Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grades	Ground Benign, Controlled, 25 C	350 000 hours
Ruggedised Grade	Ground Mobile, 45 C Naval, Sheltered, 40 C Airborne, Inhabited Cargo, 55C	30 000 hours 60 000 hours 50 000 hours

Physical Characteristics
Formfactor Dimensions Mass
cPCI : 3U 100 mm x 160 mm 250 g +/- 30 g

Physical Characteristics
Formfactor	Dimensions	Mass
cPCI : 3U	100 mm x 160 mm	250 g +/- 30 g

Serial I/O Connectors
Air-Cooled Front Panel I/O 2 x Tyco 50-pin Connectors
Conduction-Cooled Backplane I/O cPCI Connector

Serial I/O Connectors
Air-Cooled	Front Panel I/O	2 x Tyco 50-pin Connectors
Conduction-Cooled	Backplane I/O	cPCI Connector

Environmental Specifications
Grade Commercial Industrial Ruggedised
Temperature
- Operating
- Storage
0 C to +55 C
-40 C to +85 C
-15 C to +75 C
-50 C to +85 C
-40 C to +85 C
-60 C to +125 C
Humidity 0% - 90% non-condensing 0% - 95% non-condensing 0% - 95% non-condensing
Shock N/A 30 g peak for 11 ms 40 g peak for 11 ms
Vibration
- Sine
- Random
2 g (peak) 10 Hz to 100 Hz
0,04 g²/Hz at 15 Hz to 2 kHz
2 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz
10 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz

Environmental Specifications
Grade	Commercial	Industrial	Ruggedised
Temperature - Operating - Storage	0 C to +55 C -40 C to +85 C	-15 C to +75 C -50 C to +85 C	-40 C to +85 C -60 C to +125 C
Humidity	0% - 90% non-condensing	0% - 95% non-condensing	0% - 95% non-condensing
Shock	N/A	30 g peak for 11 ms	40 g peak for 11 ms
Vibration - Sine - Random	2 g (peak) 10 Hz to 100 Hz 0,04 g²/Hz at 15 Hz to 2 kHz	2 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz	10 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz

Part Selector
Part Number Formfactor Grade Cooling I/O Number of channels
CCII/UHS/3UCPCI/8P/FP/COM 3U cPCI Commercial Air Front Panel 8 x RS-232/422/485
4 x RS-232
CCII/UHS/3UCPCI/8P/FP/IND 3U cPCI Industrial Air Front Panel 8 x RS-232/422/485
4 x RS-232
CCII/UHS/3UCPCI/8P/FP/RGD 3U cPCI Ruggedised Air Front Panel 8 x RS-232/422/485
4 x RS-232
CCII/UHS/3UCPCI/8P/BP/CC 3U cPCI Ruggedised Conduction Backplane 8 x RS-232/422/485
4 x RS-232

Part Selector
Part Number	Formfactor	Grade	Cooling	I/O	Number of channels
CCII/UHS/3UCPCI/8P/FP/COM	3U cPCI	Commercial	Air	Front Panel	8 x RS-232/422/485 4 x RS-232
CCII/UHS/3UCPCI/8P/FP/IND	3U cPCI	Industrial	Air	Front Panel	8 x RS-232/422/485 4 x RS-232
CCII/UHS/3UCPCI/8P/FP/RGD	3U cPCI	Ruggedised	Air	Front Panel	8 x RS-232/422/485 4 x RS-232
CCII/UHS/3UCPCI/8P/BP/CC	3U cPCI	Ruggedised	Conduction	Backplane	8 x RS-232/422/485 4 x RS-232

CH8SS011 Version 0.2 2019-10-09
