The XMC to VPX Converter facilitates the use of a Switched Mezzanine Card (XMC) Adapter in a VPX system. This converter can be used either for testing of XMC Adapters using a VPX-only host or it can be used in production systems, but an extra backplane slot will be required to accommodate the combination of the XMC Adapter and the XMC to VPX Converter.

The XMC to VPX Converter provides a single lane PCIe signal interface on the host XMC site.

The 64 I/O signals from the VPX P2 connector are routed through to the host PMC Pn4 Connector.

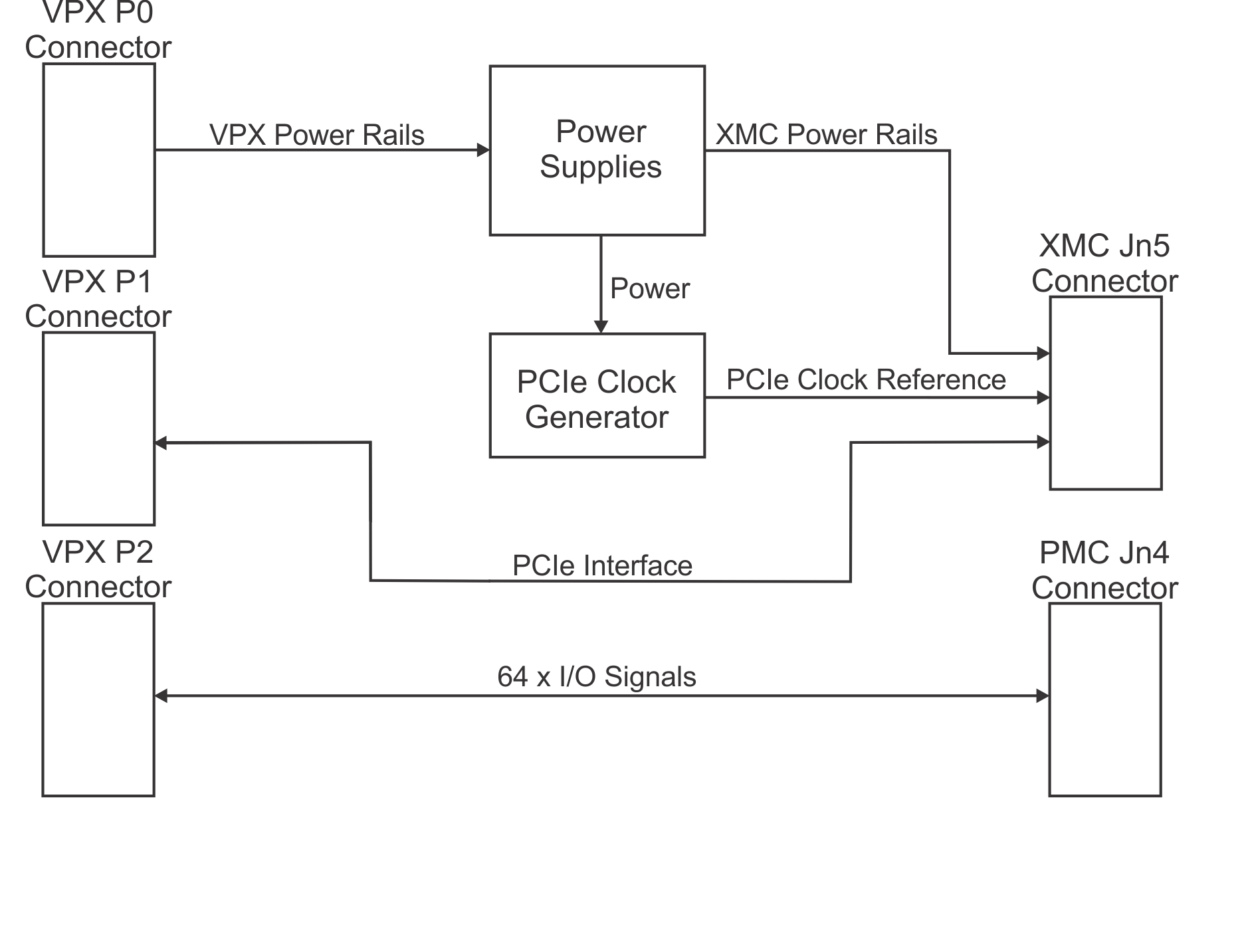

XMC to VPX Converter Block Diagram

Features

single lane PCIe interface
64 x I/O signals routed to the PMC Pn4 Connector
Provides both +5V and +12V VPOwer configurations to the XMC site

Applications

production or field tests

Specifications
PCIe Interface Single lane; 2,5 GHz PCIe
Electrically : PCI Express Rev. 2.0
PCI Interface 32-bit or 64-bit PCI, 33/66 MHz
Electrically : PCI Rev. 2.2; 3,3 V signalling
Reliability Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grade Ground Benign, Controlled, 25 C 750 000 hours
Ruggedised Grade Ground Mobile, 45 C
Naval, Sheltered, 40 C
Airborne, Inhabited Cargo, 55C 150 000 hours
250 000 hours
200 000 hours

Specifications
PCIe Interface	Single lane; 2,5 GHz PCIe Electrically : PCI Express Rev. 2.0
PCI Interface	32-bit or 64-bit PCI, 33/66 MHz Electrically : PCI Rev. 2.2; 3,3 V signalling
Reliability	Figures according to MIL-HDBK-217F, Parts Stress Method
Commercial and Industrial Grade	Ground Benign, Controlled, 25 C	750 000 hours
Ruggedised Grade	Ground Mobile, 45 C Naval, Sheltered, 40 C Airborne, Inhabited Cargo, 55C	150 000 hours 250 000 hours 200 000 hours

Physical Characteristics
Formfactor Dimensions Mass
VPX Base Standard ANSI/VITA 46.--2007 (R2013) 100 mm x 160,00 mm (+0,0 / -0,5 mm), height envelope of 16,00 mm 150 g +/- 10 g

Physical Characteristics
Formfactor	Dimensions	Mass
VPX Base Standard ANSI/VITA 46.--2007 (R2013)	100 mm x 160,00 mm (+0,0 / -0,5 mm), height envelope of 16,00 mm	150 g +/- 10 g

Environmental Specifications
Commercial Grade Industrial Grade Ruggedised
Temperature
- Operating
- Storage
0 C to +55 C
-40 C to +85 C
-15 C to +75 C
-50 C to +85 C
-40 C to +85 C
-60 C to +125 C
Humidity 0% - 90% non-condensing 0% - 95% non-condensing 0% - 95% non-condensing
Shock N/A 30 g peak for 11 ms 40 g peak for 11 ms
Vibration
- Sine
- Random
2 g (peak) 10 Hz to 100 Hz
0,04 g²/Hz at 15 Hz to 2 kHz
2 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz
10 g (peak) 5 Hz to 2 kHz
0,1 g²/Hz at 15 Hz to 2 kHz

Environmental Specifications
	Commercial Grade	Industrial Grade	Ruggedised
Temperature - Operating - Storage	0 C to +55 C -40 C to +85 C	-15 C to +75 C -50 C to +85 C	-40 C to +85 C -60 C to +125 C
Humidity	0% - 90% non-condensing	0% - 95% non-condensing	0% - 95% non-condensing
Shock	N/A	30 g peak for 11 ms	40 g peak for 11 ms
Vibration - Sine - Random	2 g (peak) 10 Hz to 100 Hz 0,04 g²/Hz at 15 Hz to 2 kHz	2 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz	10 g (peak) 5 Hz to 2 kHz 0,1 g²/Hz at 15 Hz to 2 kHz

Part Selector
Part Designation Cooling Grade
CCII/FFC/XMCVPX/COM Air Commercial
CCII/FFC/XMCVPX/IND Air Industrial
CCII/FFC/XMCVPX/RGD Air Ruggedised
CCII/FFC/XMCVPX/CC Conduction Ruggedised

Part Selector
Part Designation	Cooling	Grade
CCII/FFC/XMCVPX/COM	Air	Commercial
CCII/FFC/XMCVPX/IND	Air	Industrial
CCII/FFC/XMCVPX/RGD	Air	Ruggedised
CCII/FFC/XMCVPX/CC	Conduction	Ruggedised

CFFCSS005 Version 0.3 2019-02-26
CCII Systems (Pty) Ltd • P.O. Box 171 • Rondebosch 7701 • South Africa
Telephone : (+27 21) 683 5490 • Facsimile : (+27 21) 683 5435 • WWW : www.ccii.co.za
